UV DISINFECTION SYSTEMS
UV system is the most reliable , effective and safe water disinfection method.
The reason is chlorination and other chemical disinfection method will have long term
damaging effects on the human body and environment.
Why you choose UV for disinfection?
1. No Damage for our environment. No chemicals are required.
2. Safety and easy operation.
3. Low operation costs VS chemical disinfection costs.
4. Short detention time & small space.
5. Efficient disinfection method.
6.
Customized design.

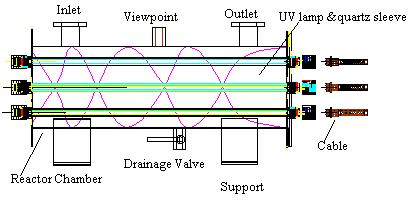

Photo & Diagram

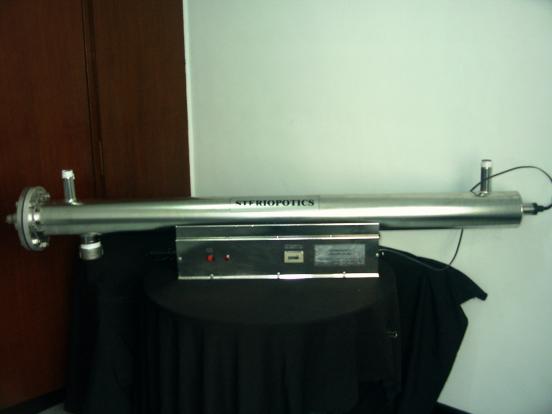

UPVC material Chamber UV ( 150W) UV-150W for Condenser water filtration system
.jpg)
UV-300W for aquaculture
for sea water
Specifications
| Model | Capacity(m3/hr) | Number of Lamp | Power(Watts) | Diameter(mm) | Length(mm) |
| UV-1 | 6~16 | 1 | 75 | 101 | 860 |
| UV-2 | 13~33 | 2 | 150 | 152 | 860 |
| UV-3 | 25~63 | 3 | 225 | 203 | 860 |
| UV-4 | 30~75 | 4 | 300 | 203 | 860 |
| UV-5 | 42~108 | 5 | 375 | 203 | 860 |
| UV-6 | 50~130 | 6 | 450 | 203 | 860 |
| UV-7 | 58~138 | 7 | 525 | 203 | 860 |
Options:
* Counter indicator for
lamp life time
* UPVC chamber
* UV intensity meter
* Indicator for each
lamp:
P.S.
1. Customer Designed.
2. Capacities are approximate and depend on water & various wastewater Characteristic.
3. The
Dimensions are approximate value
Advantages
1.
Made of stainless steel 304 for drinking water,
food process,....
2. UPVC material chamber for Fish & Shrimp
Hatcheries for sea water
and for swimming pool, Spa with
corroding environment and economic selection.
3. Electropolished and passivated for reactor chamber
4. Compact design, easy to install & maintain.
5. Non-toxic and non-corroding
6. Standard UV intensity range: 15,000 ~45,000 µwatt/cm2
7. Higher
transmission for quartz sleeve
Applications
1. Municipal Wastewater Treatment Plants
2. Industrial Wastewater and Reuse
3. Air condition Cooling water Recirculation
4. Fish & Shrimp Hatcheries
5. Other industry
disinfection , for food and beverage, pharmaceutical, and micro-electronics industries, pure water
