Dimensions
CRB-050
& 065 CRB-080
& 100 & 125 & 150
CRB-200
& 250

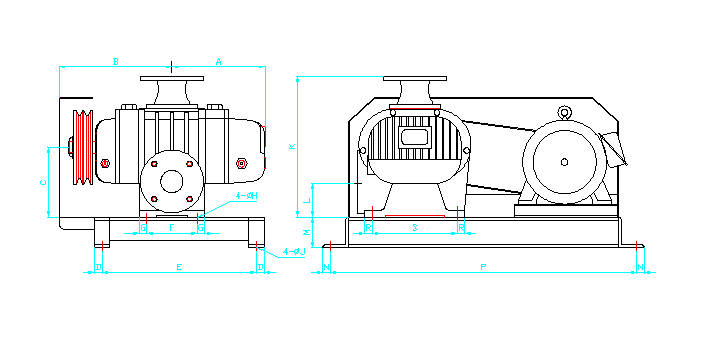

CRB-050 & 065 Outline Dimensions
Units:mm
| Model | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | Wt(kg) |
|
CRB-050 |
240 | 270 | 165 | 20 | 370 | 125 | 15 | 15 | 15 | 360 | 90 | 75 | 18 | 734 | 15 | 200 | 100 |
|
CRB-065 |
280 | 290 | 165 | 20 | 370 | 200 | 15 | 15 | 15 | 360 | 95 | 75 | 18 | 734 | 15 | 210 | 120 |
(WT. Not including motor)
¡@

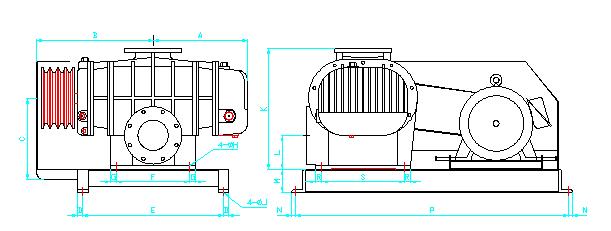

CRB-080 & 100 & 125 & 150
Outline Dimensions
Units:mm
| Model | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | Wt(kg) |
|
CRB-080 |
310 | 350 | 220 | 20 | 450 | 190 | 25 | 17 | 15 | 400 | 102 | 75 | 18 | 934 | 25 | 250 | 200 |
|
CRB-100 |
365 | 420 | 220 | 20 | 450 | 290 | 25 | 15 | 15 | 400 | 115 | 75 | 18 | 934 | 25 | 250 | 230 |
| CRB-125 | 440 | 485 | 310 | 25 | 605 | 320 | 25 | 21 | 19 | 515 | 155 | 100 | 20 | 1190 | 25 | 350 | 450 |
| CRB-150 | 495 | 540 | 310 | 25 | 605 | 425 | 25 | 21 | 19 | 515 | 155 | 100 | 20 | 1190 | 25 | 350 | 500 |
(WT. Not including motor)
¡@

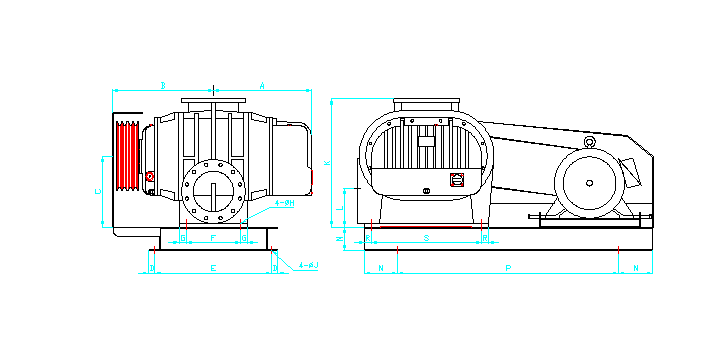

CRB-200 & 250 Outline Dimensions
Units:mm
| Model | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | Wt(kg) |
|
CRB-200 |
500 | 520 | 360 | 32.5 | 730 | 270 | 40 | 23 | 19 | 650 | 187 | 125 | 200 | 1100 | 40 | 550 | 810 |
|
CRB-250 |
620 | 620 | 430 | 32.5 | 730 | 460 | 40 | 23 | 19 | 720 | 225 | 125 | 200 | 1100 | 40 | 550 | 1100 |
(WT. Not including motor)
